nanoCellar
Cannular Bench Top Can Seamer
Precio habitual
$ 17,999.00 MXN
Precio habitual
Precio de oferta
$ 17,999.00 MXN
Precio unitario
por
Impuesto incluido.
No se pudo cargar la disponibilidad de retiro

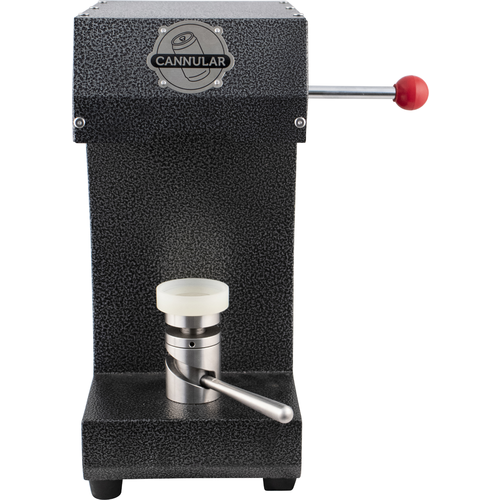

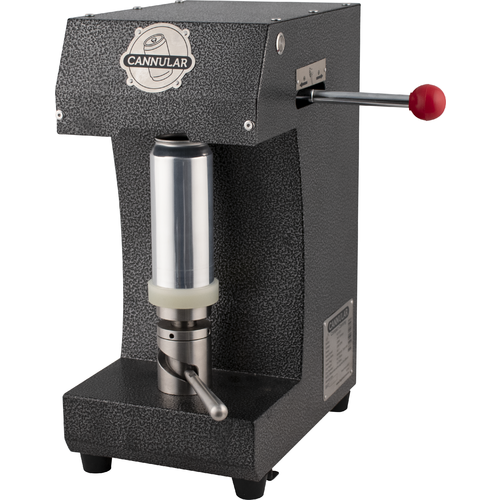

This bench top unit is one of the most compact and easy to use can seamers you'll find. The Cannular only requires one person to operate, and each can takes roughly 5 seconds to seam. With a two-person team, one filling and one seaming, the Cannular becomes a suitable option for nano breweries doing small canning production runs.

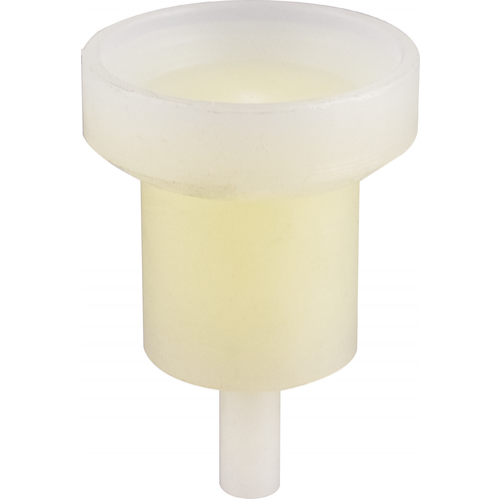

The Cannular's table spacer is specifically designed to work with 500ml (16.9 oz) Can Fresh aluminum cans.
330ml (11.2 oz) Can Fresh cans are also available, but you will need the correct table spacer to use them with the seamer.
Operation:
The beauty of the Cannular lies in how truly simple it is to operate. With only three points of operation, it only takes a few minutes to familiarize yourself with the machine. The seaming process is as follows:
- Place lid atop the can and place the can on the table spacer
- Turn the platform lever clockwise to raise the can to the seamer
- Press the button to turn the machine on and begin spinning the can
- Push the seaming lever away from you and hold for 1-2 seconds
- Pull the seaming lever towards you and hold for 1-2 seconds
- Press the button to turn off the machine and stop spinning the can
- Turn the platform lever counterclockwise to lower the can
That's all there is to it!
Construction:
The Cannular was designed to be compact, durable, and safe to operate in a wet environment. The platform assembly is made from 304 grade stainless steel, so no matter how messy your canning gets, there's no need to worry about rusting or degradation. The body of the unit is made from hammered sheet metal and fastened together with stainless steel screws. Rubber feet help keep the unit from slipping and sliding while in use. In addition, the Cannular features built-in brackets near the feet so you have the option to mount the machine to your counter or benchtop. The Cannular runs off of 24V DC power via the Anderson socket located on the back. This lower voltage was chosen specifically to make the unit as safe to use in a wet environment as possible.
The Cannular was designed to be compact, durable, and safe to operate in a wet environment. The platform assembly is made from 304 grade stainless steel, so no matter how messy your canning gets, there's no need to worry about rusting or degradation. The body of the unit is made from hammered sheet metal and fastened together with stainless steel screws. Rubber feet help keep the unit from slipping and sliding while in use. In addition, the Cannular features built-in brackets near the feet so you have the option to mount the machine to your counter or benchtop. The Cannular runs off of 24V DC power via the Anderson socket located on the back. This lower voltage was chosen specifically to make the unit as safe to use in a wet environment as possible.
Power:

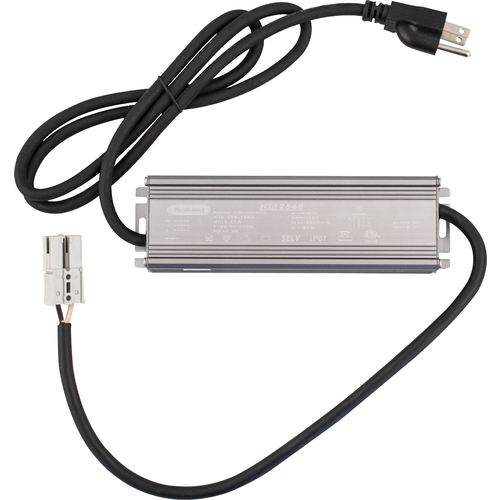

As noted above, the Cannular comes with a 24V DC Anderson socket located on the back of the unit. It does not, however, include a cord and plug.
Specifications:
- Power: 250W 24V DC
- Rated Speed: 3300 RPM
- Gearbox Ratio: 9.8 : 1
- Dimensions: 14" L x 9" W x 19.5" H
- Weight: 40 lbs
- Designed for B64 Can Lids
*Please note: the table spacer included with the Cannular is specifically designed to use Can Fresh 500ml aluminum cans, which are 167.8mm tall and 52.4mm in diameter. See below under "You Might Also Need" for an additional table spacer that can be purchased to make the seamer compatible with 330ml cans.
**Note 2: When you receive your cannular the rollers have been set and tested at the factory. They should not need adjustment for 100,000 cans. The table, however, comes unadjusted and getting it set up correctly is very important to getting a proper seal. Cannular's test show that a .4mm (.015") actual overlap is all that is needed to seal to 90 PSI. The proper table tension takes a little practice and expect to waste a few cans getting it dialed in. Once you learn the proper tension re-adjusting it is very quick and easy. You want the tension to be tight but not so tight as to dent the can. Use cans at your fill height with water for proper tension adjustment.
