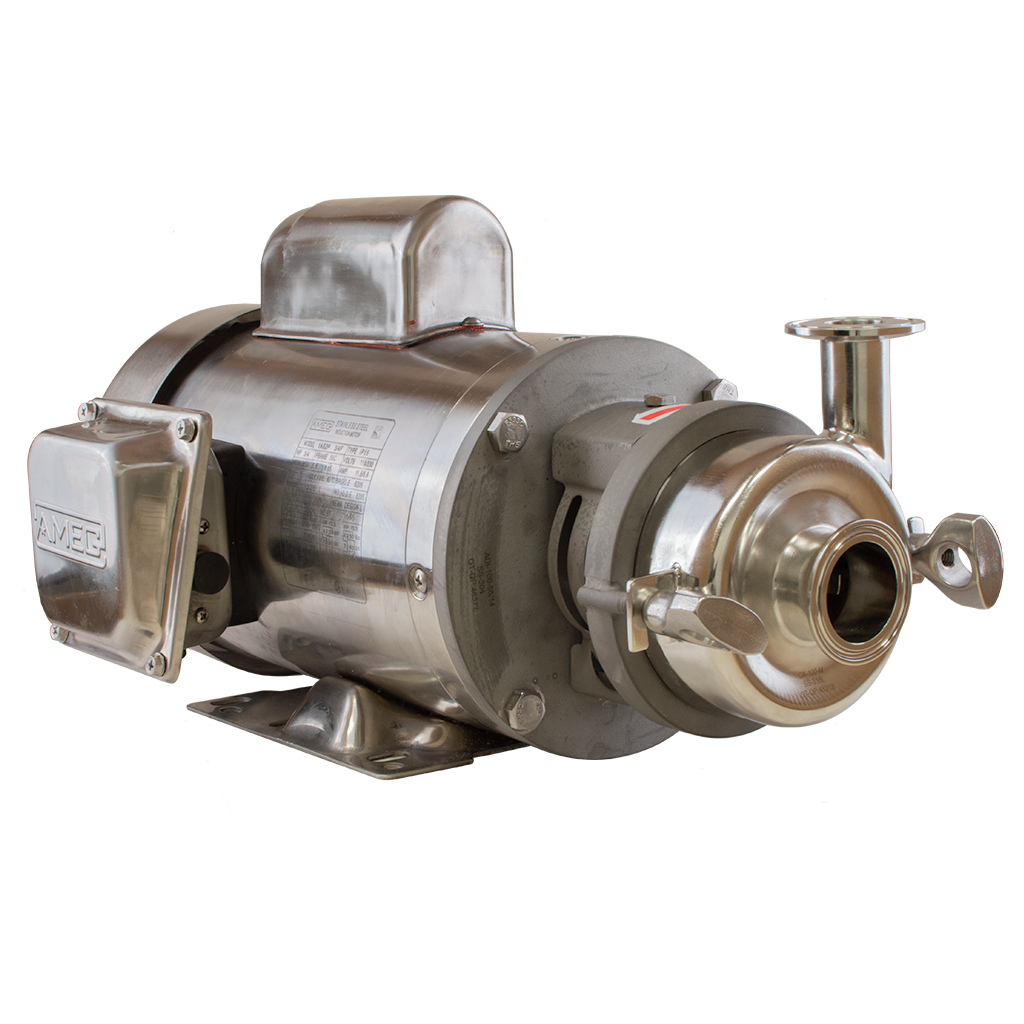

3/4 HP Washdown Motor Pump

High quality pump manufactured in North America and Europe and assembled in Canada.

The C+100MD has kept the original casing design and popular external mechanical seal options, however, it features a collar that clamps down on the drive shaft over the full 360 degrees removing the minor wobble that can occur from set screwed shafts. The collar reduces rattling sounds at lower speeds. The improved casing design and larger profile o-ring make it less susceptible to warping and leakage. The C+100 pump head is attached to our efficient stainless steel washdown motor. This pump cannot be used with a VFD.

FEATURES:

• 1 1/2" X 1" Tri-clamp connections
• Stainless steel washdown motor
• 316L stainless steel construction
• 304 stainless steel adapter
• External mechanical D seal
• 115/230 Volt Single Phase

HORSEPOWER

3/4 HP: This pump is ideal for Nano breweries and small wineries. Maximum flow is 20 GPM and maximum discharge head is 50 feet.
