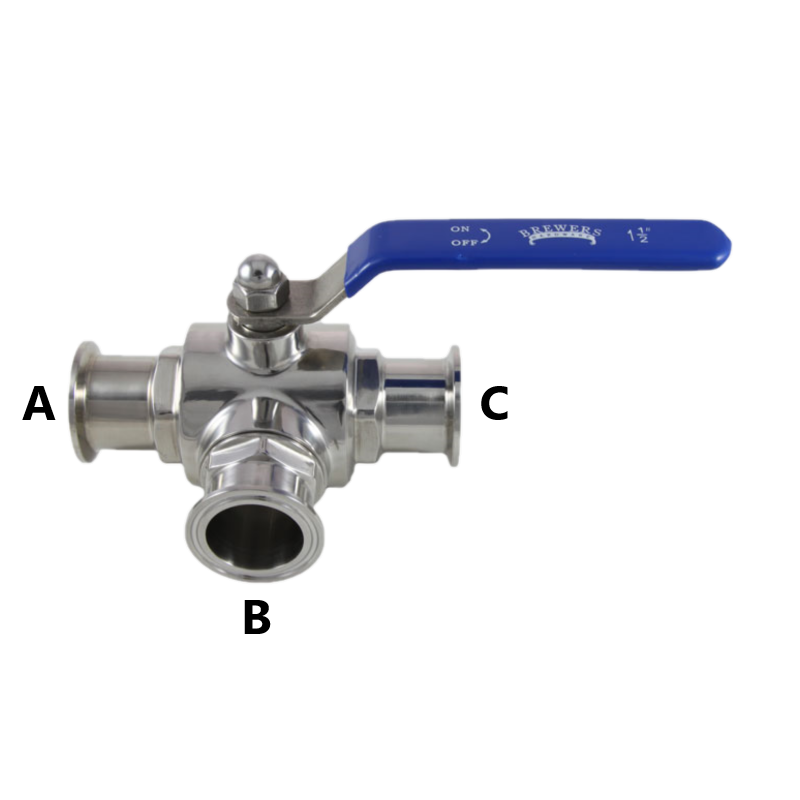

1.5" TC 3-Way Ball Valve

Body and Ball Material: 304 Stainless Steel

Handle and Hardware Material: 201 Stainless Steel

Seat Material: PTFE Teflon

Flange Outside Diameter: 1.984"

Bore Inside Diameter: 1.375"

A to C Length: 6"

B to Centerline Length: 3"

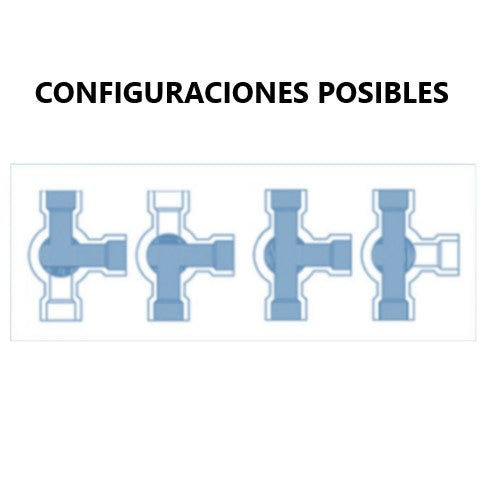

This is one of the most unique valves. The handle and ball rotate 360* in the seat.  The passages of the ball itself are drilled through as well as a single perpendicular 'tee' port.  This gives you four different flow options.  As expected, the valve can flow from A to C or from B to C, but it can also be set to flow from A to B, blocking off C or it can have all 3 ports open, A to B and C.  This is a great feature for cleaning and/or draining your system.  Made from 304 stainless steel and has 1.5" Tri Clover Compatible flanges on the connections.
